Mostly Printed CNC the Corner Block

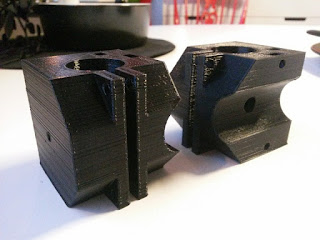

The corner blocks are all done.

and here are my printer settings I'm using Cura as slicer.

They turned out quit fine.

Tomorrow I'm going to get the tubes 3/4" stainless steel tubes. ;-)

If you thinking of building one yourself here is all info you need.

http://www.vicious1.com/blog/parts/

mostly printed CNC part 1

Yesterday I started a new build :-D I'm going to build a CNC machine. And I have decided to build this one.

Mostly Printed CNC / MultiTool

So now my Reprappro mono mendel is printing all day long. here are the first parts the corner blocks printed with 3 perimeters and infill at 70% and layer height 0.2mm

I will work on this project simultaneousli as the injection mold machine. so stay tuned for more updates.

DIY injection mold machine part 4 THE MACHINE

Well the machine is up and running. And i have tried to make it as rigid as possible. I still don't have any plans for the hardware I just build it from the images in my head. ;-)

But here is some pictures.

Here you have the heat chamber and the piston.

Heat protection!

This is the top of the tower.

Everything is made adjustable!

Safety first :-D

Some of my welding.

The mechanism of the piston arm. with a lock in the top position.

some links to make the piston move straight down in the heat chamber.

And here is everything in place and it's alive :-D

Some brass spacers.

And the nozzle.

this is the heat chamber mounting whit a spring to lift the nozzle after the injection.

that's all for now next time I'm going to show how i did my first mold.
